The best modern heating and cooling system for your real-estate infrastructures.
The control system and accessories are assembled, set and tested in the factory to ensure a quick and reliable plug & play installation.
The only native multi-zone system on the market to use constant pressure to adjust the ideal air flow rate according to the zones in demand.
85% of fine particles and 60% of 1 µm ultra-fine particles are captured for your well-being; ISO 16890-certified performance.
DIMENSIONS
cPIA 6 (3 zones) : (L) 878 x (l) 666 x (h) 239 mm
cPIA 6 (4 zones) : (L) 946 x (l) 911 x (h) 239 mm
cPIA 8 (4 zones) : (L) 878 x (l) 911 x (h) 239 mm
cPIA 8 (5 zones) : (L) 946 x (l) 1124 x (h) 239 mm
NOMINAL POWER (2 PIPES)
cPIA 6 (3 zones) : (hot) 3610 – (cold) 3840 W
cPIA 6 (4 zones) : (hot) 3770 – (cold) 4000 W
cPIA 8 (4 zones) : (hot) 6440 – (cold) 6740 W
cPIA 8 (5 zones) : (hot) 6940 – (cold) 7190 W
NOMINAL AIRFLOW
cPIA 6 (3 zones) : 530 m³/h
cPIA 6 (4 zones) : 560 m³/h
cPIA 8 (4 zones) : 1000 m³/h
cPIA 8 (5 zones) : 1100 m³/h
MAXIMUM AVAILABLE STATIC PRESSURE
240 Pa
Compact unit installed outside the room to ensure greater accessibility for maintenance purposes even in periods of high occupancy.
cVIA plug & play for an uncomplicated and reliable installation, also particularly well suited to off-site constructions.
60% effective in capturing 1 µm ultra-fine particles in response to customers now wishing to breathe healthy air.
Native connection to the monitoring system or to the Cloud, stations equipped with an OPC server and RJ45 sockets communicate via the building’s Ethernet network.
DIMENSIONS
cVIA 4 : (l) 402 x (h) 795 x (d) 258 mm
cVIA 6 : (l) 596 x (h) 795 x (d) 258 mm
cVIA 8 : (l) 796 x (h) 835 x (d) 281 mm
NOMINAL POWER (2 PIPES)
cVIA 4 : (hot) 2470 – (cold) 2370 W
cVIA 6 : (hot) 3550 – (cold) 3790 W
cVIA 4 : (hot) 6270 – (cold) 6680 W
NOMINAL AIRFLOW
cVIA 4 : 400 m³/h
cVIA 6 : 550 m³/h
cVIA 8 : 900 m³/h
MAXIMUM AVAILABLE STATIC PRESSURE
420 Pa
Multi-functional heat pump with energy transfer for heating, cooling and domestic hot water.
The aCQUAREVIA recovers the energy extracted from the air conditioning network in the summer to produce domestic hot water, virtually free of charge.
The intelligent energy transfer system meets the “titre V” requirements of the French environmental regulations, RT2012 and RE2020.
A large range of 16 units where one single unit can cover the heating, air-conditioning and domestic hot water requirements of a residence of 120 apartments.
49 to 343 kW
DIMENSIONS
Length (size 41 to 324): 2,440 to 4,206 mm
Width (size 41 to 324): 1183 to 1653 mm
Height (size 41 to 324): 1735 to 2330 mm
POWER
Heating (size 41 to 324): 55 to 343 kW
Cooling (size 41 to 324): 48 to 303 kW
Domestic hot water (size 41 to 324): 54 to 329 kW
ENERGY RECOVERED IN THE SUMMER TO PRODUCE DOMESTIC HOT WATER
DHW (size 41 to 324): 61.8 to 398 kW

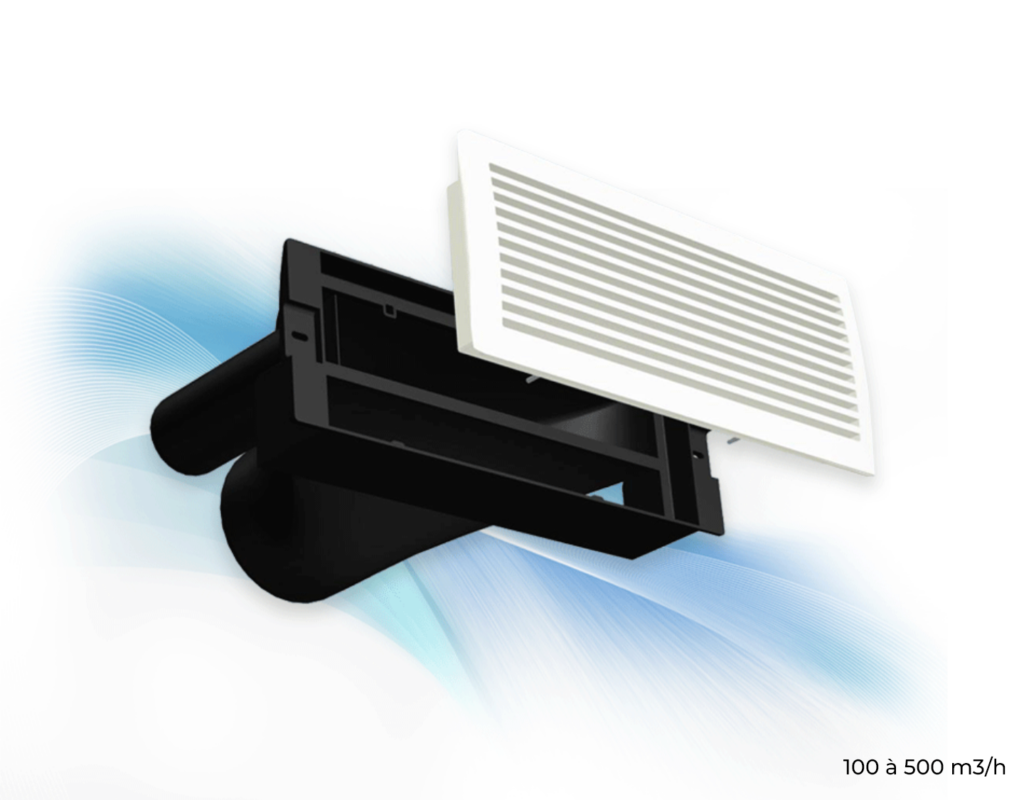

Grid + wall-mounted plenum for supplying and returning conditioned air, and ensuring a flow of fresh air.
3 sizes available to ensure optimum thermal and acoustic comfort, therefore, the size of the diffuser is adapted to the size of the room being treated.
dUALIA systems are installed in record time thanks to their lightweight and anti-condensation design, coupled with a patented fastening system which snaps onto the wall.
dUALIA systems carry out 3 functions: Coanda effect diffusion, return of conditioned air and supply of fresh air, if necessary.
Impressive operating silence obtained by an aeraulic design that is optimised right down to the smallest detail.
Its elaborate and discrete design fits seamlessly into residential and hotel infrastructures, and can also be painted so that it blends into the surroundings.
EFFECTIVE DIMENSIONS
400 SLIM : (l) 400 x (h) 90 mm
400 : (l) 400 x (h) 140 mm
700 : (l) 700 x (h) 140 mm
NOMINAL AIRFLOW
400 SLIM : 100 to 200 m³/h
400 : 150 to 300 m³/h
700 : 250 to 500 m³/h
SURFACE AREA TREATED
400 SLIM : 8 to 16 sqm.
400 : 12 to 24 sqm.
700 : 20 to 40 sqm.
An original way to interact with your heating / air-conditioning system.
Equipped with a large 7” touchscreen, the réGATE delivers so much more than a basic central control system.
Featuring all the functions of a smart home hub, it quite naturally becomes the control interface for your living space.
Integration of connected objects (lighting systems, shutters, etc.) to efficiently reduce your energy consumption.
This screen also has a simplified display mode so that it can be adapted to suit your personal taste.
The Over-the-Air remote update allows you to take full advantage of the latest features.
Customisable scenarios to make your daily life easier.
DIMENSIONS
(l) 112 x (h) 59 x (d 17 mm
SCREEN
7” – 1024 x 600 px
Communication
OPC, Modbus, Wi-Fi, Zigbee, BLE
Thanks to its sleek design, the réSENS thermostat can be discreetly integrated into any type of interior space.
The thermostat’s E-ink display provides the ideal technology for efficiently reducing your energy consumption.
The réSENS thermostat measures the ambient temperature and humidity to ensure comfort and well-being.
Its integration into the rSMART environment ensures simple and connected access.
DIMENSIONS
(l) 89 x (h) 59 x (d) 17 mm
SCREEN
2,7” – 117 dpi
Communication
Modbus RTU, Zigbee, BLE
Straightforward and economical native connectivity which does not require a web server interface or other smart home box.
French Cloud based on an open source community platform independently of the services usually provided by GAFAM.
An application that guides the professional installer through each step of the start-up process by asking simple and intuitive questions, saving time and delivering peace of mind.
A simple and intuitive Smartphone application* allowing you to monitor your installation and take action wherever you are.
